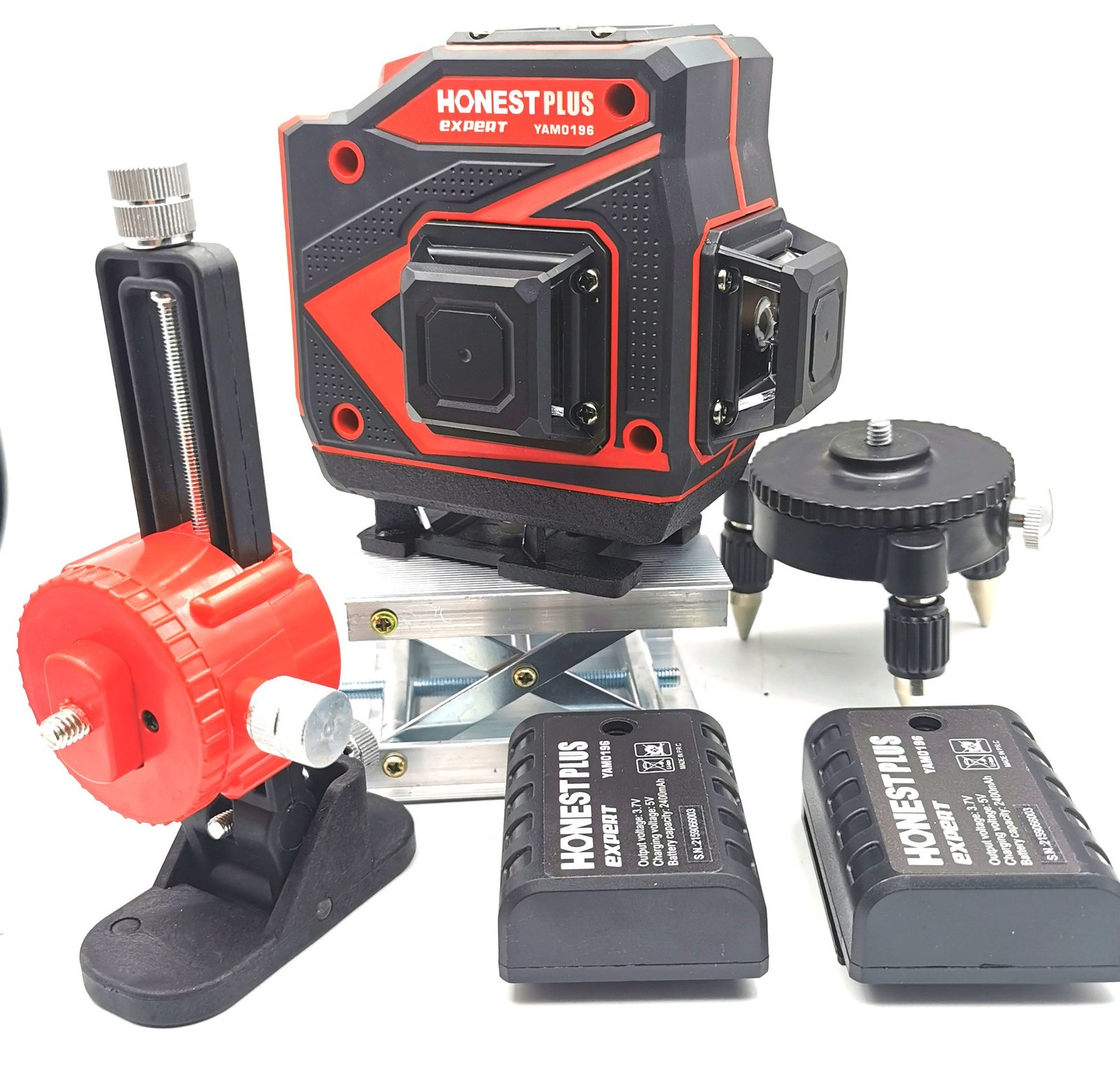

Niveau Laser 3D 12 lignes HONESTPLUS

HONEST vous propose son niveau laser 3D qui comprend les données techniques suivantes :

• Laser-beam line :

Laser Type : Red Laser    635nm < 1mw (laser class 2)

Line-width : 2.5mm/7m

Emitting angle of the laser-beam line :

Vertical and horizontal +-1mm/7mm

Rightangle : 90°+-0.25°(+-1mm/3mm)

• Operating mode :

Horizontal

Vertical + Right angle (vertical) + Plumb point (floor) + Right angle (vertical) + Horizontal

• Operating mode :

2 modes : interior/exterior

• Leveling range :

+- 2.0° (plumb leveling)

the laser-beam lines will be shut off automatically without the leveling range

• Leveling accuracy : +-1mm / 5mm
• Power supply : AAalkaline dry battery, 1.5V : 3 pieces
• Operating time :

Horizontal : Approx. 20hrs

Vertical : Aprox. 9hrs

Vertical + Horizontal : Approx. 7hrs

• Dimensions : Diameter 80mm x Height 190mm
• Weight : 1.2kg
• Tripod mounting thread : W 5/8"
• Standard equipment :

Alkaline dry battery : 3 pieces

Carrying Case

NOSITE exclusive uses Elevating Tripod
